Featured Products

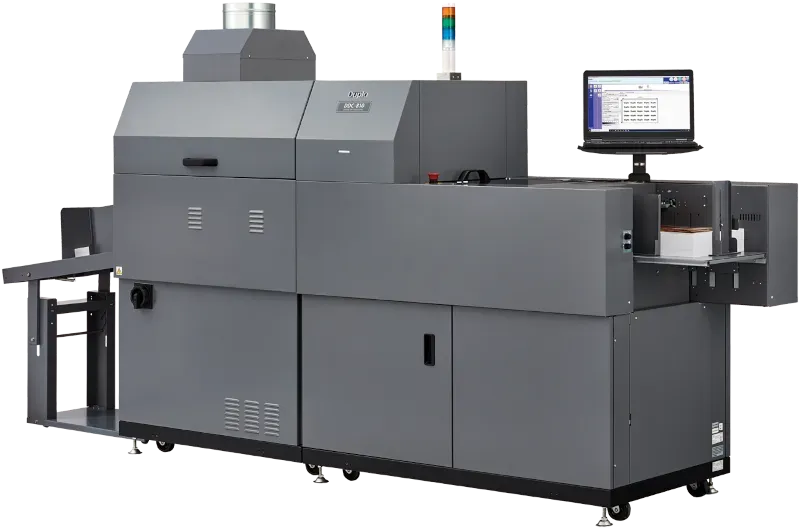

DDC-810
Raised Spot UV Coater
Raise your Game with High Profit Embellishments
- Applies spot coating, texturized, and tactile enhancements
- Performs with precision without the use of screens or dies
- Elevates printed applications into premium products
Produce premium packaging, business cards, and marketing campaigns on demand. Highly viable and design-driven, the DDC-810 Raised Spot UV Coater utilizes inkjet technology, UV lamp curing and camera image registration to deliver production output with texture and depth that your customers can touch and feel.
The small footprint does not take a lot of space, allowing you to create high-margin jobs from your own print shop. Using its digital technology with the output from your offset and digital presses, you can drive profit through short-run and customized applications produced in-house.
Features
- Automated job set up with hot folder technology
- Polymers compatible with Canon, HP, Konica Minolta, Ricoh, and Xerox presses
- Integrates with Fiery JobFlow to streamline preparation of CMYK and spot layer files
- Variable Image Barcode option automates changeovers
Key Applications
- Packaging
- Book covers
- Business cards
- Invitations
- Tickets
Specifications
| Speed | Up to 35 sheets per minute |
|---|---|
| Input Paper Size | 11" x 8.27" to 14.33" x 29.13" |
| Feeder Capacity | 5.9” (150 mm) |
| Paper Weight | 157-450 gsm |
| Coating Thickness | 20-80 microns |
| Options | Variable image barcode kit |

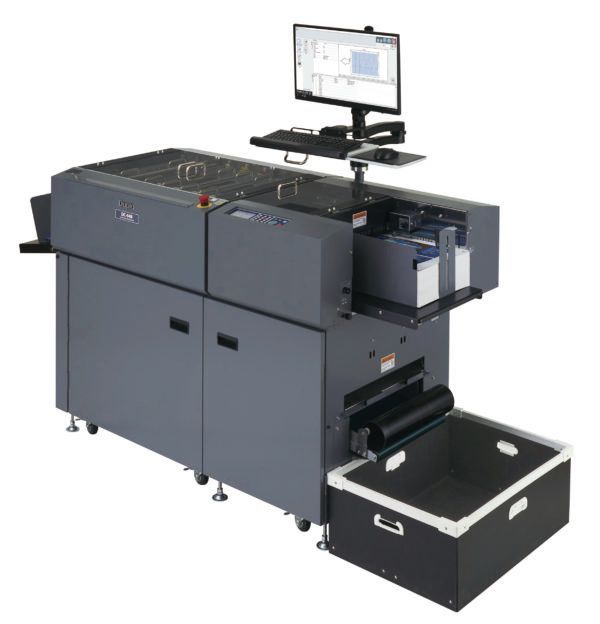

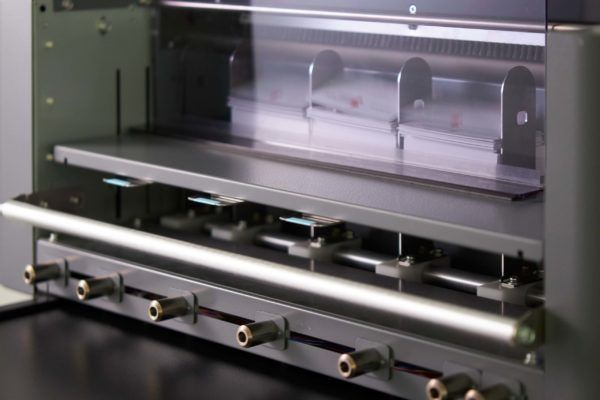

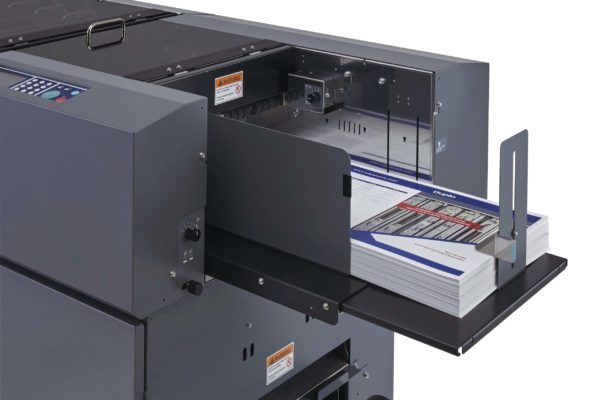

DC-648
Slitter/Cutter/Creaser
All-in-One Precision Finishing for Mid-Range Production
- Removes margins/gutters and prevents toner cracking
- Creates custom T- and L-shape perforations
- Eliminates touchpoints and streamlines workflow

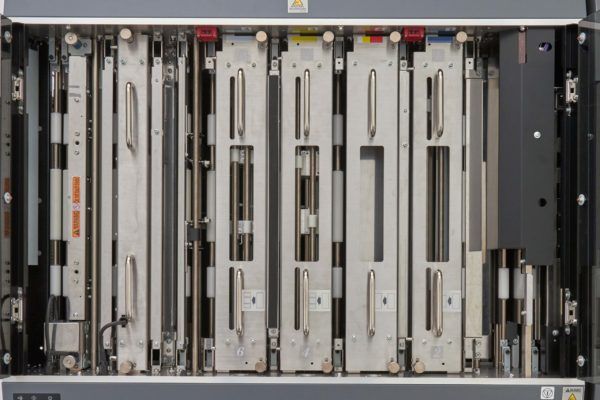

The fully automated DC-648 Slitter/Cutter/Creaser is Duplo’s newest mid-range solution. With its ability to slit/cut/crease and perforate digitally-printed applications in one pass, the DC-648 delivers professionally-finished jobs up to 40 sheets per minute. Cut job costs by doing away with time-consuming set ups and make-ready times. Finish jobs in quick turnarounds. Incredibly efficient and easy to use, the DC-648 produces a wide range of full-bleed applications from 24-up business cards to invitations and tickets on demand.
Features
- Automated job set up and changeovers

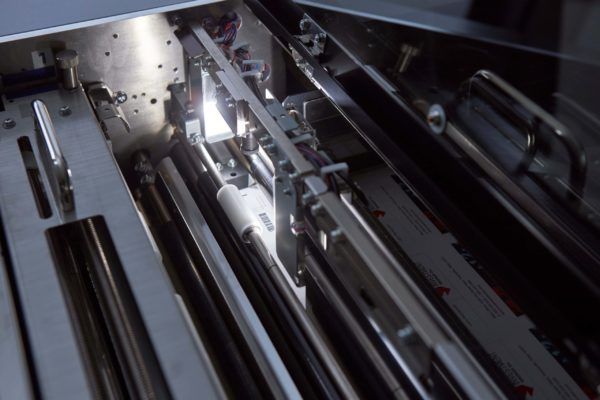

- Camera sensor rapidly scans barcodes, registration marks, and shrinkage marks
- Integrates with Fiery Impose to automate job preparation
- Optional rotary tool and cross perforating modules for additional finishing
Key Applications
- Business cards and postcards
- Gatefold invitations
- Slit-scored greeting cards
- Direct mail with perforated reply cards
- Marketing collateral
Specifications
| Maximum Speed | 40 sheets per minute |
|---|---|
| Input Paper Size | 8.26" x 8.26" to 14.56" x 39.37" |
| Feeder Capacity | 4.72" |
| Slits | Up to 8 per sheet |
| Cuts | Up to 30 per sheet |
| Creases | Up to 20 per sheet |
| Options | 48" long conveyor stacker, Cross perforating module, PC and PC arm, Rotary tool module, Slitting module |

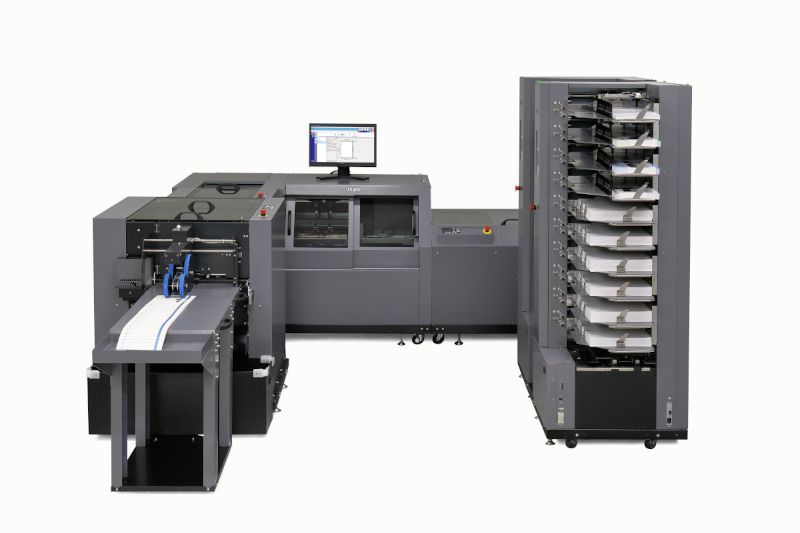

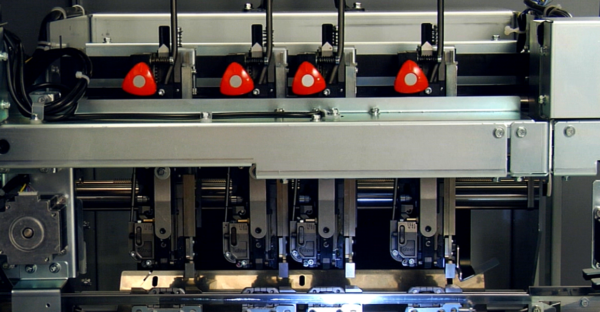

iSaddle 5.0 System
Intelligent Saddle Stitching On Demand
- Turns flat sheets into finished booklets
- Performs heavy-duty stitching
- Produces flatter, thicker booklets

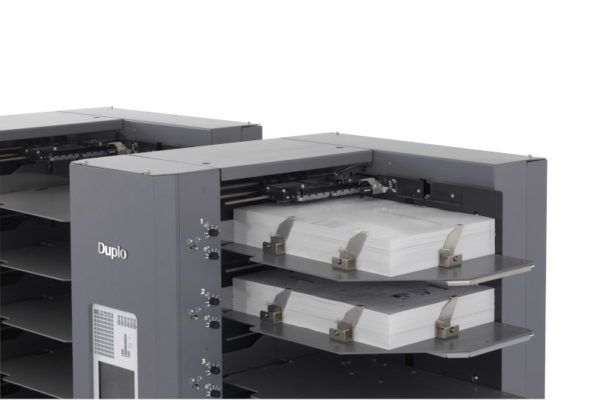

The iSaddle 5.0 is Duplo’s next generation saddle stitcher combining intelligent feeding and collating with high performance scoring, plough folding, and stitching. No need to fold signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Unlock the capability to produce a broader range of applications in a variety of sizes including 12″ x 12″, letter landscape and long cover booklets with minimal downtime.
Features
- Automated job set up and changeovers
- 10-bin feeding per tower with dual fan technology
- Custom feed jobs via Intelligent Multi-Bin Feed
- Two-up applications with two-knife trimmer and 4-stitch head option
Key Applications
- Promotional calendars
- Letter landscape catalogs
- Waterfall booklets
- CD-size booklets
- Marketing collateral with spot UV covers
Specifications
| Speed | Up to 5050 booklets per hour |
|---|---|
| Maximum Number of Bins | 60 (Six DSC-10/60i towers) |
| Input Paper Size | 4.72" x 8.27" to 14.01" x 24.01" |
| Paper Weight | Art coated 84.9-157 gsm, Cover 64-300 gsm, Fine quality 64-157 gsm |
| Number of Sheets | Up to 30 sheets |
| Options | 3-stitch head kit, 4-stitch head kit, 6-page insert kit, 8mm gutter cutter, Barcode kit, DBM-400STR High Pile Stacker, DKTS-200 Two Knife Trimmer, Envelope kit, Ultrasonic sensor kit |
